Product Description
Intelligent Torque Drivers:

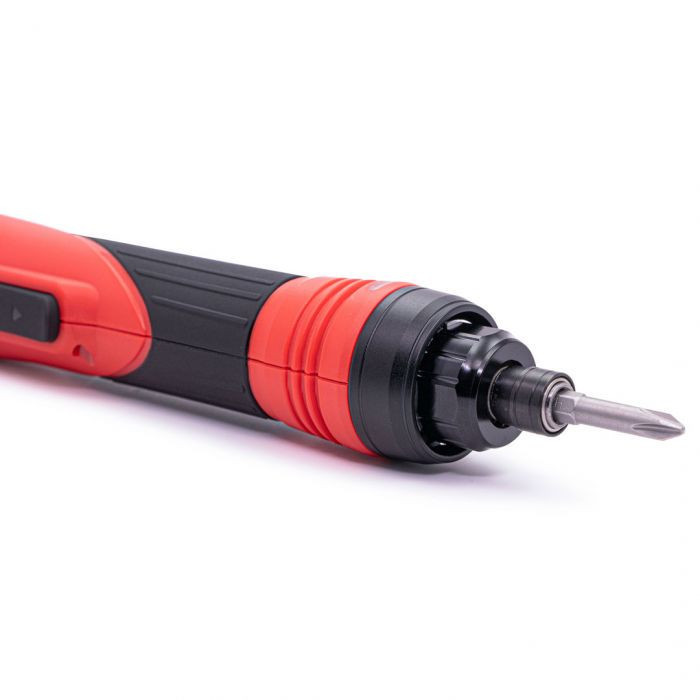

The CHP ATX-12, 30, 50 Intelligent Torque Drivers are premium non-slip grip drivers that work with the ATX Intelligent Torque Controller to calculate pressure and precision. The new CHP ATX Series Smart Servo Fastening System provides high-precision torque and angle-controlled fastening using a high-quality DC brushless servo motor, a high-precision transducer, and high-resolution digital encoder for accurate angle measurement.
| Model | ATX-12 | ATX-30 | ATX-50 |
|---|---|---|---|
| Torque Range | 2.4 - 12 kgf-cm (2.08 - 10.41 lbf-in.) |
6.0 - 30 kgf-cm (5.20 - 26.03 lbf-in.) |
10 - 50 kgf-cm (8.67 - 43.39 lbf-in.) |
| Max Speed (RPM) | 2000 | 1200 | 700 |
| Torque Precision | < ±3% | ||
| Tool Bit Shank | 6.35 mm (0.25 in.) Hex | ||
| Tool Bits Included (50 mm Length) |
Phillips #1 - 3.0 mm ø Phillips #2 - 4.5 mm ø |
Phillips #2 - 4.5 mm ø Phillips #2 - 6.0 mm ø |
2pcs Phillips #2 - 6.0 mm ø |
| Grip Diameter | 34 mm (1.34 in.) | ||
| Trigger Type | User-Programmable Push/Lever/Both | ||
| Work Light | Integrated White LED - User-Programmable Intensity | ||
| Status Indicator | User-Programmable Yellow/Red/Green | ||
| Dimensions (W x D x H) | 41 x 40 x 272 mm (1.61 x 1.57 x 10.71 in.) |
||
| Weight | 480 g (16.9 oz.) | ||
| Operating Environment | 0 - 40°C (-32 – 104°F) 0 - 90% RH (Non-condensing) |
||
| Enclosure Rating | IP40 | ||
12, 30 & 50 Torque Range:
These transducer drivers have an LED status indicator ring, use a 1/4” hex bit, and a torque range of 2.4 to 50 (kgf-cm) with a maximum speed of 2000.
Touchscreen Smart Controller:
The new generation of CHP Torque Drivers is now controlled via touchscreen digital controls for setting torque speeds, making it easier to change and manage torque speeds. The ATX Intelligent Torque Controller is a 10-inch, LCD touchscreen controller for the CHP ATX-12, 30, and 50 drivers. The controller includes a network interface that stores and exports graph data, is user friendly and intuitive for easy set-up. LED backlight, the controller comes with either 1 or 2 ports for powering and controlling the ATX drivers. The large touchscreen interface allows the user to easily adjust the settings on the drivers for superior torque control.
Single & Dual Ports:
The ATX series controller also features an industry-first dual-port controller that can operate two drivers simultaneously or in a user-defined sequence. The dual port controller provides an extra 100W of power to the drivers with all the same benefits. Each fastener parameter is programmable for various combinations of time, torque, rotation angle, and direction. Programmable digital I/O and definable user profiles with password protection to provide process control.
TECHNICAL DOCUMENTS:
PB464 New CHP ATX Series Smart Servo Fastening System (317.25 kB)
