Product Description

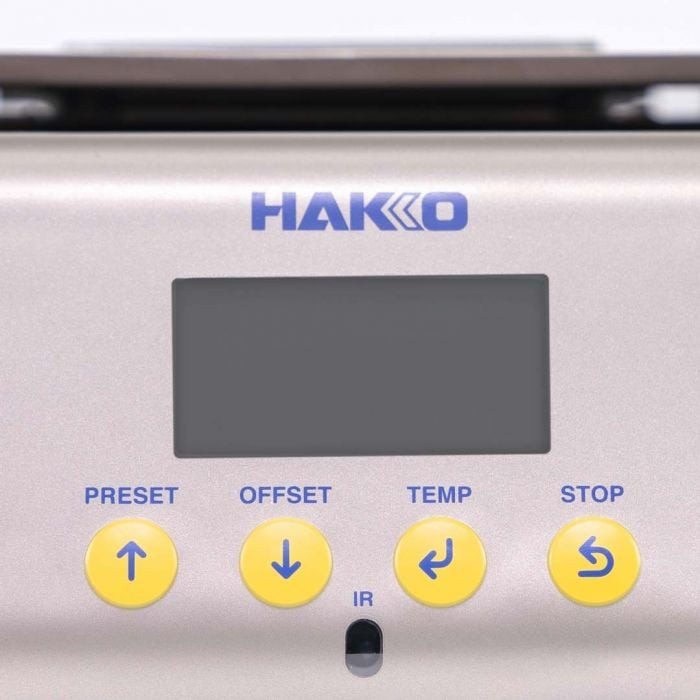

The new digital solder pot from Hakko. The FX-305 comes with a standard 75 x 75 crucible size, a new cover to protect from solder splatter, and new software to be easily programmed from any PC. The new LCD display gives clear icon indicators that allow the user to know when its in different modes, locked, or in a specific profile.
FX-305 is only compatible with the HAKKO CONTROL SOFTWARE V2 or higher.
*Value is based on a full standard crucible at idle after calibration.
FX-305 Crucibles
| 50 x 50 mm Square | 75 x 75 mm Square | 100 x 100 mm Square | |
| Temperature range | (120-990°F)
|
(120-940°F)
|
(120-840°F)
|
| Cruicible Dimensions | 50(W)x50(D)x72.5(H) mm 2.0(W)x2.0(D)x1.7(H) in. |
75(W)x75(D)x42.5(H) mm 3.0(W)x3.0(D)x1.7(H) in. |
100(W)x100(D)x53(H) mm 3.9(W)x3.9(D)x2.1(H) in. |
What's in the box?
| Description | Part No. |
| Soldering Pot Unit | FX305-03 |
| Spatula | B2932 |
| J-shaped Waste Collector | B2919 |
| Hexagon Wrench | B1416 |
| 75 x 75 mm Crucible | A5068 |
| USB Cable | B5129 |
| Pot Cover | B5322 |
| Power Cord | B2419 |
| Instruction Manual | -- |
| CD-ROM for PC Software | -- |
Technical Documents:
PB461 FX-305 Digital Solder Pot (391.47 kB)
FX305 User Manual (Rev. 2024-12) (3.72 MB)
FX-305 Software Installation (Rev. 2022-07) (4.31 MB)
FX-305 Parameter Settings (Rev. 2024-12) (3.33 MB)
FX-305 Hakko Control Software (3.21 MB)
